The Detecting Algorithmic Bias (DAB) Pipeline

Overview

The DAB pipeline is a codebase designed to evaluate bias in clinical trial data. It is constructed in a modular way, allowing the user to:

  • Select an endpoint

  • Import their own clinical data

  • Train a model using existing or custom statistical methods

We define algorithmic bias as a disparity in model performance between different demographic groups.

Getting Started

Setting Up the Pipeline

Clone the pipeline repository into Google Colab:

import os
if not os.path.exists("/content/Pipeline"):
    !git clone https://github.com/CTN-0094/Pipeline.git
    os.chdir("Pipeline")

Install all required packages:

!pip install -r requirements.txt

Running the Pipeline

Run the following command to execute the pipeline with default settings.

!python run_pipelineV2.py --dir "/content/RESULTS"

Sample Console Output:

Elapsed time: 0.000638 seconds
Available outcomes:
1. ctn0094_relapse_event
2. Ab_krupitskyA_2011
3. Ab_ling_1998
4. Rs_johnson_1992
5. Rs_krupitsky_2004
6. Rd_kostenB_1993
Select an outcome by entering its number: 1

If you are prompted to install MatchIt or optmatch, select “1” (Yes).

MatchIt installed successfully.
✖ Would you like to install optmatch?
1: Yes
2: No

Selection: 1

You have successfully run the pipeline! 🎉

Viewing the Results

  • On the left sidebar of Google Colab, click the Files tab

  • Open the RESULTS directory

  • Inside, go to the evaluations folder

  • Open the most recent .csv file

  • Each row = a demographic ratio split

  • Rightmost columns = evaluation metrics

Understanding the Pipeline

The pipeline uses the CTN-0094 dataset to model opioid use disorder outcomes. These outcomes are derived from urine drug screening data across multiple weeks.

Outcomes

  1. ctn0094_relapse_event — Any positive UDS

  2. Ab_krupitskyA_2011 — Confirmed abstinence (weeks 5–24)

  3. Ab_ling_1998 — Maintained 13 consecutive negative UDS (1 month)

  4. Rs_johnson_1992 — 2 consecutive positive UDS after 4-week treatment

  5. Rs_krupitsky_2004 — 3 consecutive positive UDS = relapse

  6. Rd_kostenB_1993 — 3 weeks of consecutive negative UDS

More info: https://ctn-0094.github.io/CTNote/

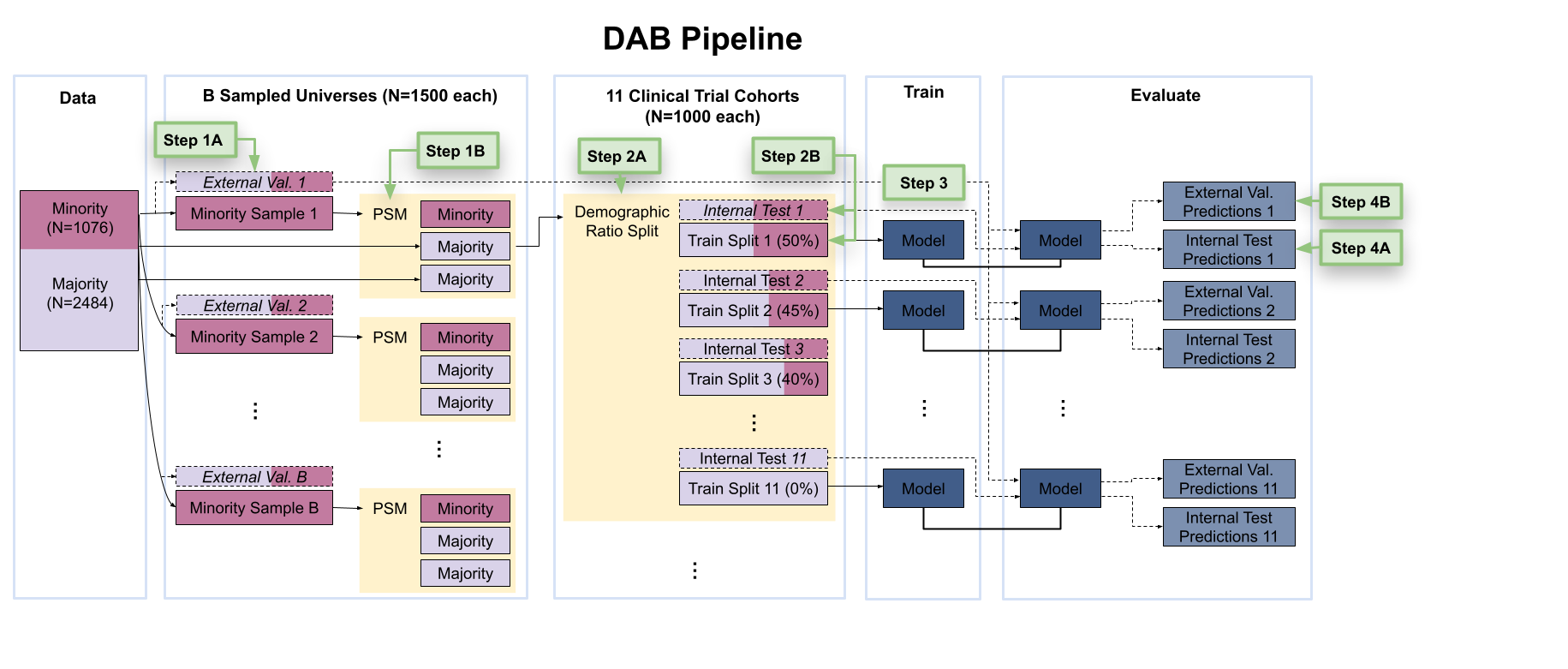

Pipeline Diagram

DAB Pipeline Diagram

How the Pipeline Works

Step 1: Hold out m validation samples and draw n “minority” + 2n matched “majority” samples.

Step 2: Form trial cohorts of 50/50 splits, then train/test on that and validate on held-out m.

Step 3: Train the specified model.

Step 4: Measure performance on test and validation samples.

Interpretation

If model accuracy does not change across demographic compositions:

  • ✅ Outcome is measurement invariant

If model accuracy does change across demographics:

  • ❌ Outcome is measurement variant

Reference: Odom et al., 2025

Customizing the Pipeline

The DAB pipeline is modular. You can swap out:

  • Models

  • Datasets

  • Outcome definitions

However, user-defined dataset integration is not yet automated.
